HD Multifunctional vehicle-mounted image Processor-multiplexer of single, double and quad view

HD Multifunctional vehicle-mounted image Processor-multiplexer of single, double and quad view

HMU318

STONKAM HD Multifunctional vehicle-mounted image Processor-multiplexer is compatible with a variety of camera resolutions and video output formats, which can bring a new upgrade to ordinary vehicle-mounted monitors. It supports 4-channel camera input, and has multiple functions such as multi-screen display, reverse cursor, image flip, etc., which can make it easier for drivers to monitor the situation around the vehicle in real time, effectively reduce accidents and help driving safety!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

【Support multiple resolutions】Four-channel camera resolution support: 1080P25/1080P30/720P25/720P30/PAL/NTSC
【Multiple video formats available】 AHD(1080P25/1080P30/720P25/720P30)、CVBS（PAL/NTSC) output
【Multi image real-time display】Single, dual, quad view display modes available
【Wide power supply】10 - 32V ; Support 12V or 24V automobile battery, suitable for a variety of scenarios
【Images flipping function】 Images can be set to flip horizontally or vertically.
【Automatic scan】Support auto scanning, with scanning sequence and duration editable.Scanning time is adjustable from 1 to 1—60S.
【Reverse cursor】Optional cursor switch, position can be adjusted up and down, left and right.
【Support 12 languages】Language can be customized according to users' needs.
【Triggering function】Four trigger wires, with trigger display image, delay and priority adjustable
【Power supply function】Provide 12V power supply to the camera, which is convenient for users to install.
【Remote control】Adopt remote control, and support remote control extension cable.
【Menulock】It has three levels of menulocks, which can support some or all keys not responding, and can limit the driver's setting operation and prevent accidental touch.

Dimension of Multiplexer Box	140 * 122.1 * 40 mm
Power Supply	DC：10-32V
Operating Temperature	-20℃～70℃
Storage Temperature	-30℃～80℃
Power Consumption	Max. 6W
Anti-vibration	MIL-STD 810G

To help check the driving conditions around the vehicle in real time,which is conducive to safe driving

It supports camera input and video output with multiple resolution for its strong compatibility, and can be used with a variety of HD cameras and monitors to achieve multi-screen real-time display effect!

Vehicle-mounted image processor-multiplexer

Multi-display modes

HD vehicle-mounted Image Processor-multiplexer

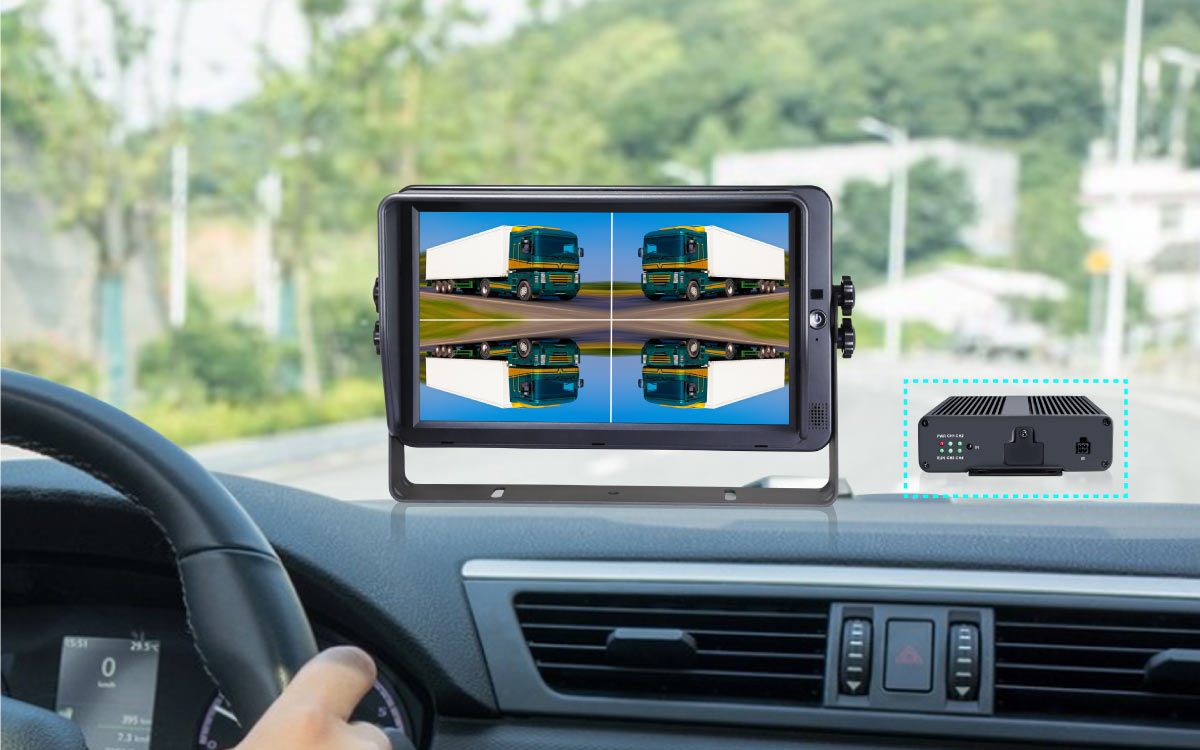

Horizontal mirror image and vertical flip display available

The display supports mirrorring, vertical flipping accounding to the users' demands, convenient for driver's viewing.

Multifunctional vehicle-mounted image Processor-multiplexer

Wide power supply input and wide application for various scenarios

Support 12V or 24V automobile battery, suitable for a variety of scenarios.

Connection

1	Indicator	5	Debug
2	IR Remote Control Receiver	6	Camera Input Connector
3	IR Extension Cable Connector	7	Video Output & Trigger Connector
4	DC Power Input Connector
