1080P HD AI Pedestrian & Vehicle Detection Camera Based on Deep Learning

ADA32

STONKAM® 1080P HD Intelligent Pedestrian & Vehicle Detection Camera adopts deep learning technology to detect pedestrians and vehicles in front of the vehicle , on the side and behind the vehicle in real time, so as to warn drivers of potential risks of collision, and improve the driving safety! The intelligent pedestrian & vehicle detection camera can be installed on the side, front and back of the vehicle, to intelligently detect pedestrians and vehicles within 20M in real time. In addition, this system can be used in various vehicles, such as buses, coaches, trucks, and construction machinery, etc.

Inquire Now

Leave your message and contact details, we will try to get back to you!

Model No. Introduce yourself * Message *

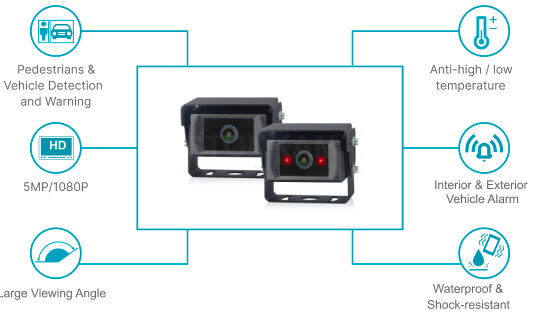

Features

  • Easy installation

  • Waterproof/Dustproof rating: IP69K, with shock resistance of 5.9G

  • The detection distance of front and side view is: 0.5M-20M; the detection distance of rear view is: 0.5M-12M

  • Full high definition 1080P video output (overlaid with pedestrian tracking and warning box)

  • Audio alarm output, can be connected to monitors or other devices with loudspeaker

  • Lens parameters: side view camera: 6mm, with the horizontal angle of 52°; rear view camera: 2.3mm, with the horizontal angle of 140°

  • USB2.0 interface, can be connected to WiFi modules and USB

  • Calibration on the web page of the phone by connecting to the WiFi hotspot

  • Automatic upgrade via USB

  • 1 channel alarm output

Supply Voltage

DC10V~32V

Consumption (12V IN)

150mA(IR light off)

700mA(IR light on)

Video Format

25 or 30

Video Output

AHD(1.0Vp-p, 75Ohm)

Resolution

1920 x 1080P

Horizontal Viewing Angle

52°/140°

Audio Output

Warning sound signal output

Communication Interface

USB 2.0 (for software upgrade)

Cable Length

3M

Working Temperature

-20 ~ +70℃

Storage Temperature

-30 ~ +80℃

Waterproof Rating

IP69K

Dimension

95 x 60 x70(mm)

Weight

500g

Housing Color

Black



Side View:



Rear view:



Are you worried about following problems when driving

There are too many blind spots to notice vehicles and pedestrians?

The traffic is too complicated to avoid pedestrians and vehicles?

What can warn us of the potential danger when driving?

......



Schematic diagaram of bus blind spot







STONKAM 1080P HD AI Pedestrian & Vehicle Detection Camera Based on Deep Learning Complete Safeguard Your Driving





STONKAM® Intelligent Pedestrian & Vehicle Detection Camera is a device aiming to greatly enlarge the drivers field of vision. It can not only quickly detect pedestrians and vehicles, provide warning information to drivers in real time; but is featured with high detection accuracy, earning drivers more reaction time, thereby reducing the possibility of traffic accidents!





AI algorithm

STONKAM® HD Intelligent Pedestrian & Vehicle Detection System adopts deep learning technology, contributing to the realization of intelligent and accurate pedestrian detection.

Intelligent Detection Vehicle Camera



pedestrian detection system



pedestrian detection

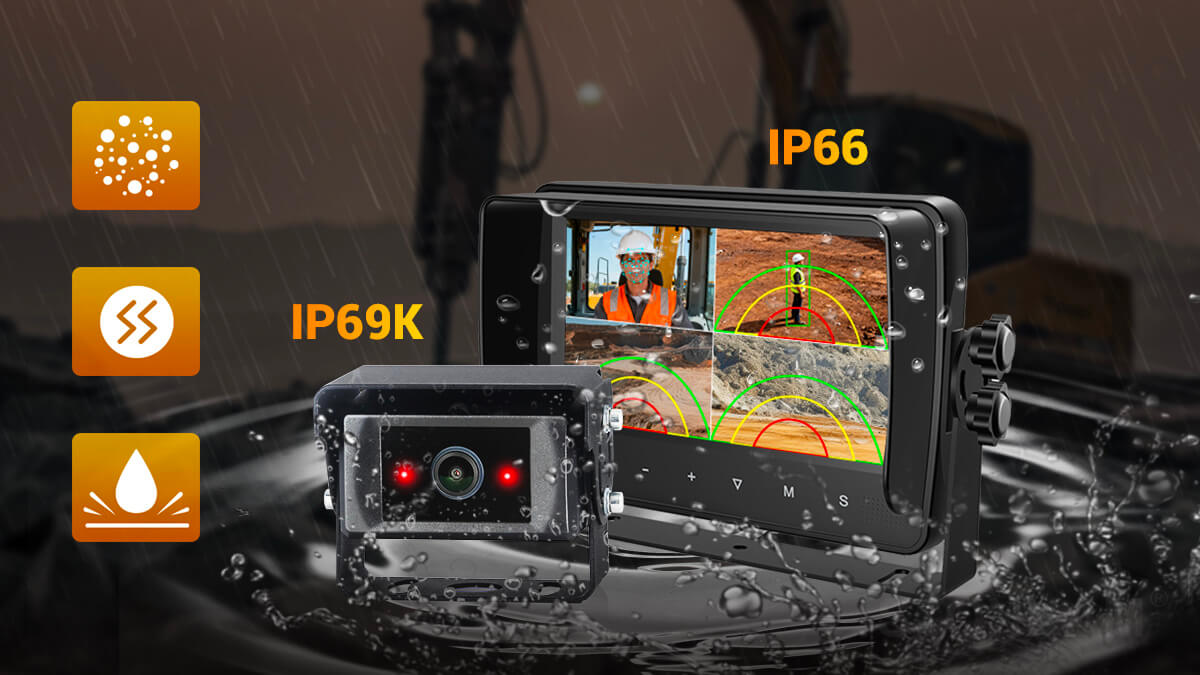

IP69K waterproof, weatherproof and durable

pedestrian detector

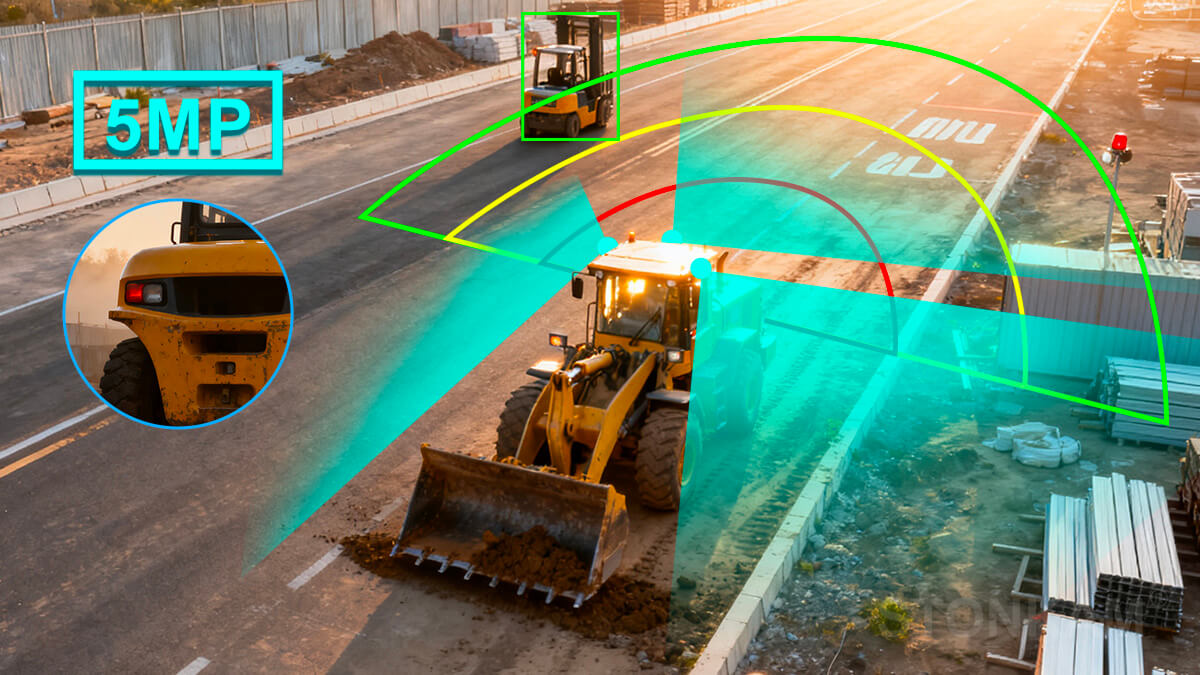

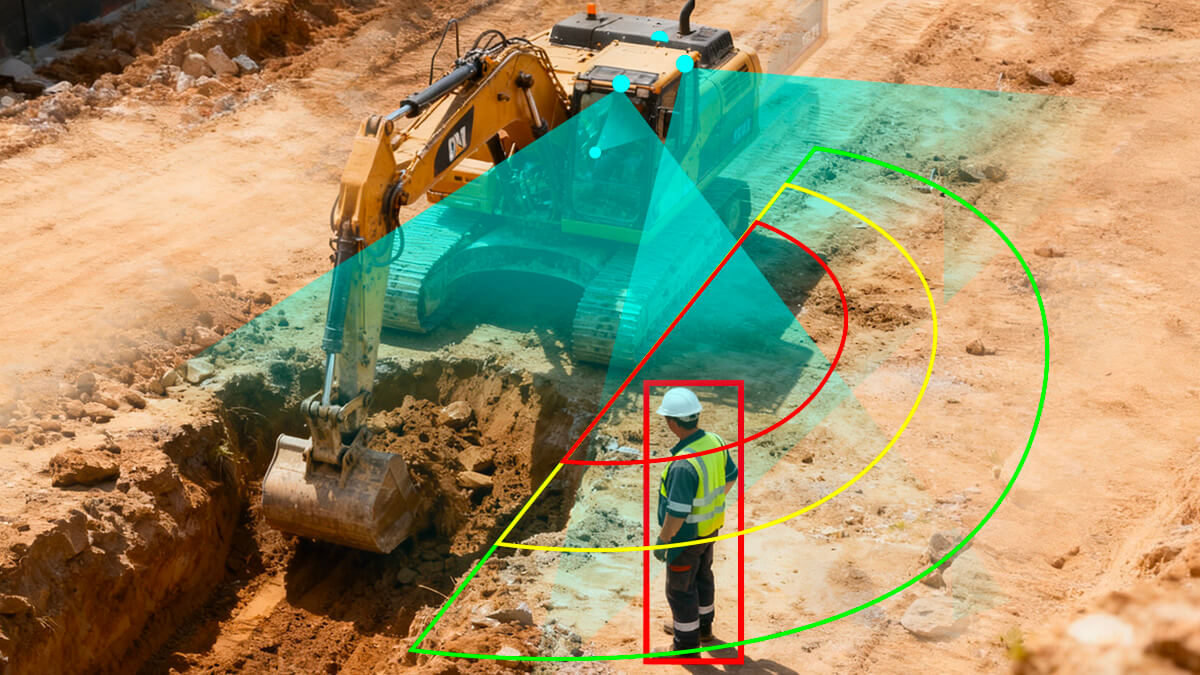

The distance for detection reaches up to 20 meters(side & front view)/12 meters(rear view)

pedestrian warning system



pedestrian alert system





Easy installation

It can be installed on the side, front and back of the vehicle, with a suggested height of 1.0M-1.6M.

Pedestrian Recognition Camera



Application



STONKAM® Pedestrian & Vehicle Detection Camera is applicable to various vehicles, such as buses, coaches, trucks, and construction machinery, etc.

STONKAM 1080P HD Intelligent Pedestrian & Vehicle Detection Camera applied to buses:

pedestrian detection systems

Pedestrian Detection Camera

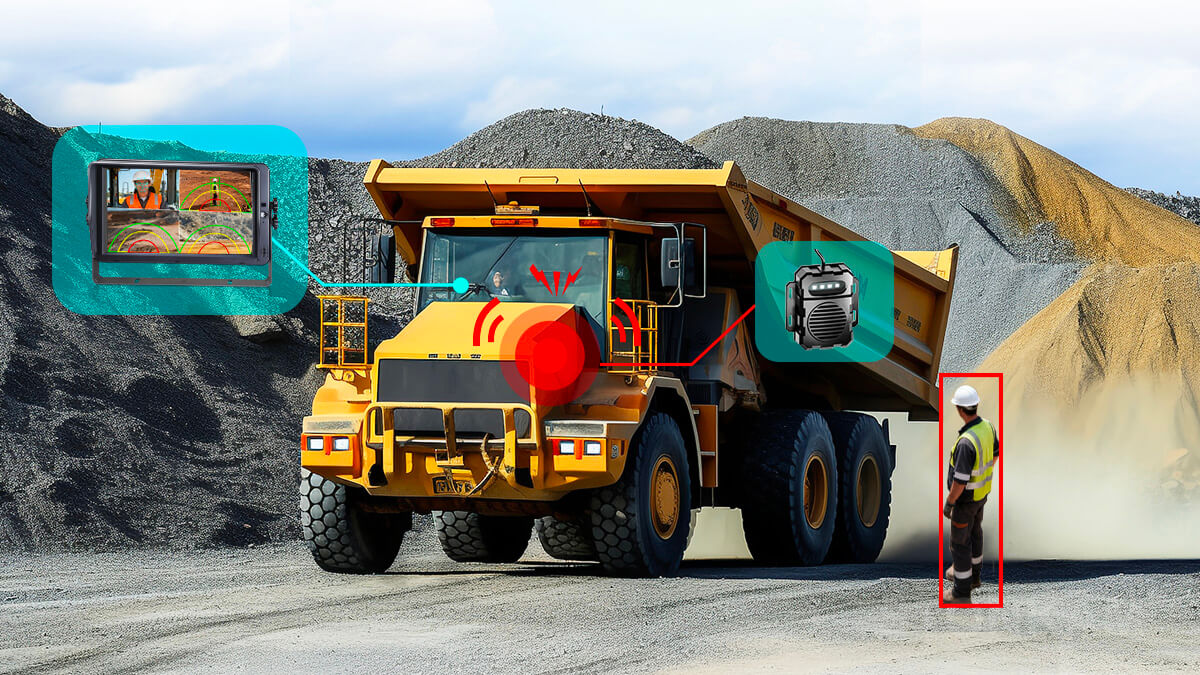

STONKAM 1080P HD Intelligent Pedestrian & Vehicle Detection Camera applied to trucks:

Pedestrian Detection Camera
