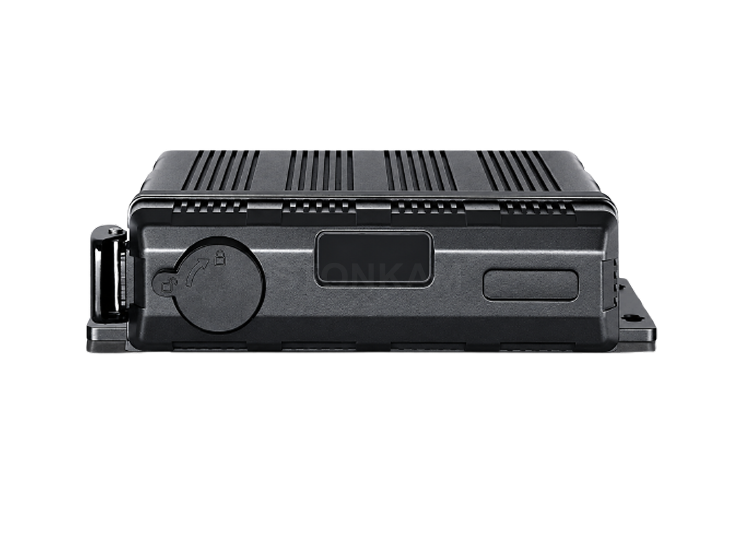

4CH Waterproof AI MDVR all-in-one Device (DMS/ADAS/BSD/APC/360)

DV456

STONKAM 4CH waterproof AI MDVR all-in-one device applies multi-core processor and powerful neural networks inference engine, which is an intelligent active security solution integrated with APC, ADAS, DMS, BSD, 360 and other algorithms. It could sense and monitor all abnormal situations in real time, such as people, vehicles and road in driving process, and it could offer real data of vehicle driving and driving behavior to achieve more intelligent, more comprehensive and more active vehicle safety management!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

IP69K waterproof】 it could be applied even if in bad weather
【ADAS+DMS】Integrated with AI ADAS+DMS algorithms, realizing driving assistance, fatigue monitoring functions.The intelligent MDVR has recognition, warning, recording and remote reporting functions to improve driving safety in fleet management.

【BSD】Integrated with BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots.
【APC】With passenger flow statistics function: Adopt deep learning technology to realize real-time recognition and motion tracking of people in the collected images, so as to achieve passenger flow statistics with high accuracy
【AVM】Integrated with 360° around view algorithm, the intelligent MDVR can realize true 360° bird-view monitoring with wide angle cameras , ensuring driving safety.
Video recording function】Full high definition image; Support multiple modes to trigger recording; Support 10s pre-recording, convenient to obtain evidence
H.264/H.265】Support dual compressions, improving the usage of storage space and wireless network traffic, able to integrate AI with ROI processing
Fleet management】PC/mobile terminal remote real-time monitoring, historical track and video query, dangerous events can be uploaded to the vehicle monitoring platforms to achieve efficient fleet management

【DVIR Compliance】Address driver vehicle inspection needs to ensure fleet safety compliance.

【Support API expansion】MDVR can be linked to the server to provide API for customers to realize the docking with customer systems.
Convenient operation】Support offline operations; Support HD touch screen control, IR remote control, and flat human-device interaction interface, convenient for customers to operate
Data security】ssl encryption, HTTPS secure transmission, Amazon S3 storage, and supercapacitor power failure protection, ensuring data security in all aspects
Multi-function access】Radar, OBD, voice intercom, speed, tire pressure, fuel consumption, temperature, door switch, vehicle weight, vibrator and other sensors available

Video input

4CH 1080P

Video standard

PAL: 25FPS, NTSC: 30FPS

Compression

H264/H265

Video output

CVBS/VGA/AHD

Total resources

1080P 120FPS

Audio input

4CH

Audio compression

ADPCM

Image quality

1~8 level adjustable

Video bit rate

128kbps~4Mbps/channel

Storage consumption

56~1800MB/(channel*hour)

Playback resolution

4*1080P

Audio bit rate

32kbps

Storage

SD card * 1, SSD * 1

Alarm input

6CH

Alarm output

2CH

RS232

1CH

RS485

1CH

CAN

2CH

USB2.0

1CH

Ethernet

1CH

IR

optional

LTE module

optional

WIFI

optional

GPS

optional

Attitude sensor

optional

Power supply

less than 15W (without camera)

Operating temp. & humidity

-20~70℃, RH 80%MAX

Algorithms

DMS/ADAS/BSD/360AVM/APC



Have you ever been disturbed by following questions?
Where to find the perfect fleet management solution?
How to achieve abnormal situations' monitoring of people, vehicle, and road?
How can we quickly provide evidence when encountering accidents or thefts?
......

4CH MDVR





All your worries can be settled by 4CH waterproof AI MDVR (DMS/ADAS/BSD/APC/360) all-in-one device with multiple optional functions!





STONKAM 4CH waterproof AI  MDVR all-in-one device is integrated with APC, ADAS, DMS, BSD, 360 and other algorithms, speically designed reliable vehicle management solution for all kinds of vehicles, widely applied in buses, tourist buses, escort vehicles, school buses, cargo van,  fire engines, emergency vehicles, passenger vehicles, etc, providing security for customers, effectively improving the operation efficiency.

MDVR





Waterproof and dustproof

IP69K waterproof, the whole device can be applied in various indoor and outdoor environments

Intelligent MDVR system



Latest AI technology, able to achieve multiple algorithms and functions

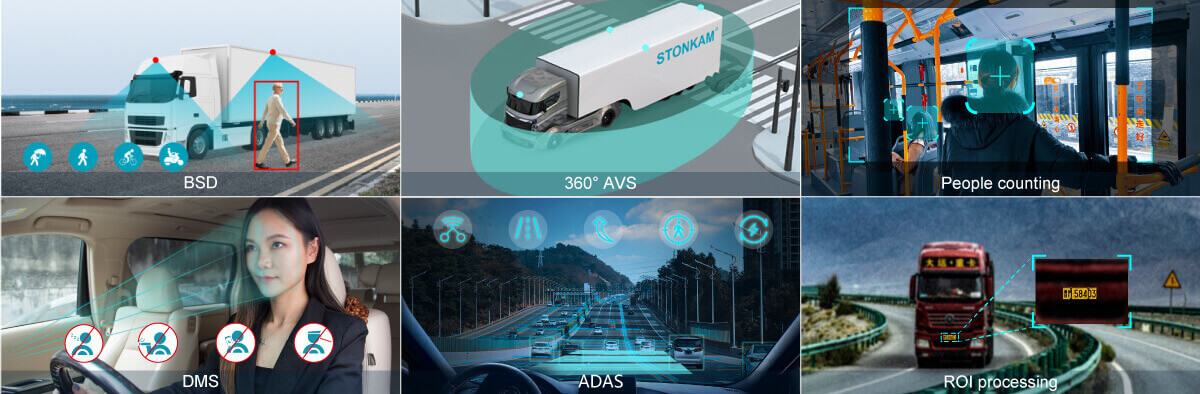

AI ALL-IN-ONE, the host is integrated with DMS/ADAS/BSD/APC/360 algorithm, supporting H.264/H.265 codes integrated AI with intelligent analysis, making ROI processing for important areas from intelligent analysis; Supporting the integration of customer self-researched algorithms, the global advanced AI all-in-one device

Intelligent mdvr

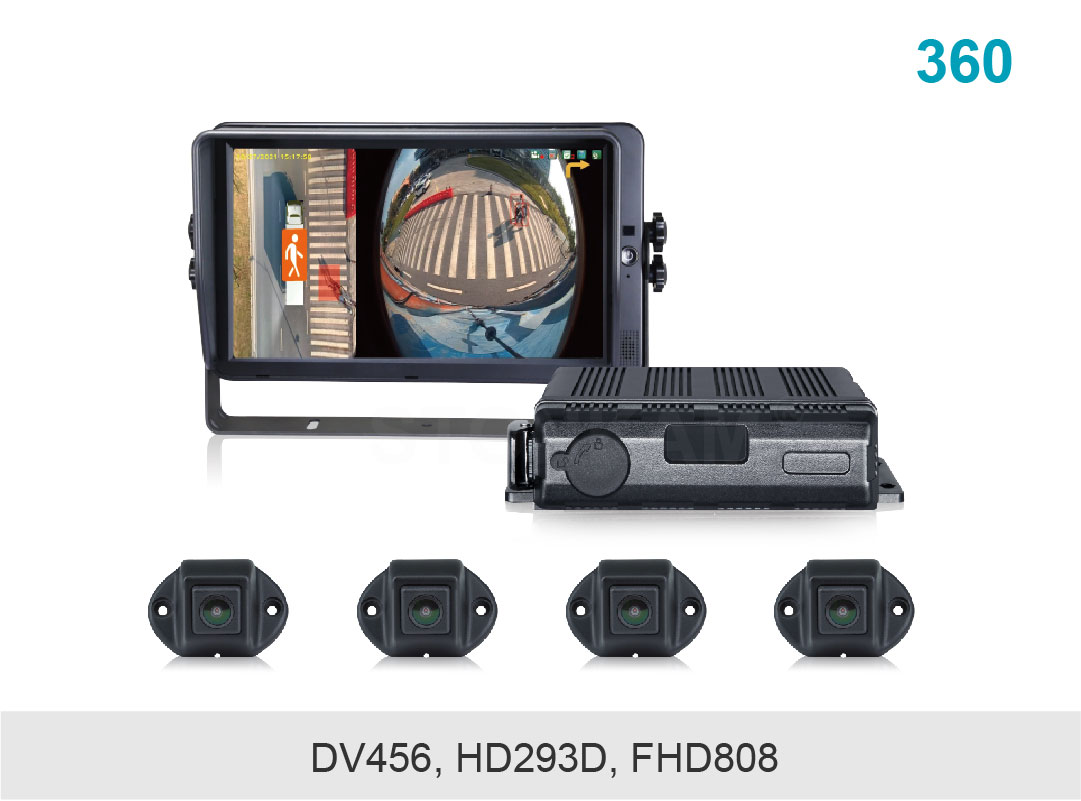

AVM algorithm, on top of the 360 bird's-eye view effect, adds up 4-way pedestrian detection function. When turned on, the DVR box can still connect peripheral devices such as radar and IPC.



HD real-time monitoring & Strong recording function

FHD image, supporting IPC and thermal imager input and RTSP video output; Support user-defined resolution, able to preview or backtrack the videos/pictures at any time; Support multiple modes of triggering recording, DMS+ADAS+BSD alarm with full function; Support 1x512GB SD card and 1x2TB SSD

mdvr





Efficient fleet management

Support PC or mobile remote control; Support real-time positioning, historical track query, remote download recording, electronic fence and other special functions; Dangerous driving events and abnormal vehicle staus can be uploaded to fleet monitoring platform; Support rapid customization development to meet customer needs. Achieve data platform management and enable fleet management

4CH MDVR





DVIR Compliance Addresses Driver Vehicle Inspection Needs

The MDVR system helps drivers conduct daily vehicle inspections and automatically generates reports to streamline the inspection process and ensure fleet safety compliance.





Support API to realize the interface with customer's system

MDVR could be linked to the server to provide API for customers to realize the interface with customer systems. Customers can either use our client or connect to their own system through the API. Thus, data exchange and information sharing could be achieved.





Data security is guaranteed

SSL encryption and https secure transmission available, supporting Amazon S3 storage to ensure data security; Support supercapacitor power failure protection to prevent data file loss caused by sudden power failure

ai mdvr





Humanistic design and operation is more convenient

Support offline operations and offline device parameters configuration, notification function and record result processing; Direct WIFI connection and convenient preview through mobile; Support HD touch screen control and IR remote control, and interface operation is more convenient for customers

AI intelligent mdvr





Support other multi-function access

Microwave radar, ultrasonic radar, OBD, voice intercom, speed, tire pressure, fuel consumption, temperature, door switch, vehicle weight, vibrator and other sensors available, ensuring safe driving

mdvr system





Application

STONKAM 4CH waterproof AI MDVR all-in-one device is widely applied, able to offer professional and reliable vehicle management solution for buses, passenger cars, tourist cars, school buses and other vehicles and support DMS, ADAS, BSD, APC,360 and passenger flow statisctics algorithm, guranteeing safe driving, effectively improving the operation efficiency.

4ch mdvr

AI MDVR

MDVR
