1080P IP69K Mini Waterproof Front View Camera

FHD676

STONKAM® supplies the best Front View Cameras featuring 1080P high resolution, IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM&OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

  • 1080P high definition

  • IP69K waterproof

  • Wide viewing angle: 150°/130°

  • Night vision distance: 3m~5m (9.84ft~16.40ft)

  • Anti-vibration: ISO 16750-3 2012 (5.9G)

  • Wide power supply: DC 12V

  • Working temperature: -20ºC ~ +70ºC

Image Device

1/2.9" CMOS

Frame Rate

25 fps / 30 fps

Effective Pixels

1920(H) x 1080(V)

Pixel Size

2.8 μm × 2.8μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Signal to Noise Ratio

Better than 52dB

White Balance

Auto

Electronic Shutter

1/25 (1/30)~1/50,000 Seconds

BLC

Auto

Operating Temp. & Humidity

 -20℃~70℃, RH 95% MAX.

Storage Temp. & Humidity

 -30℃~80℃, RH 95% MAX.





Applications

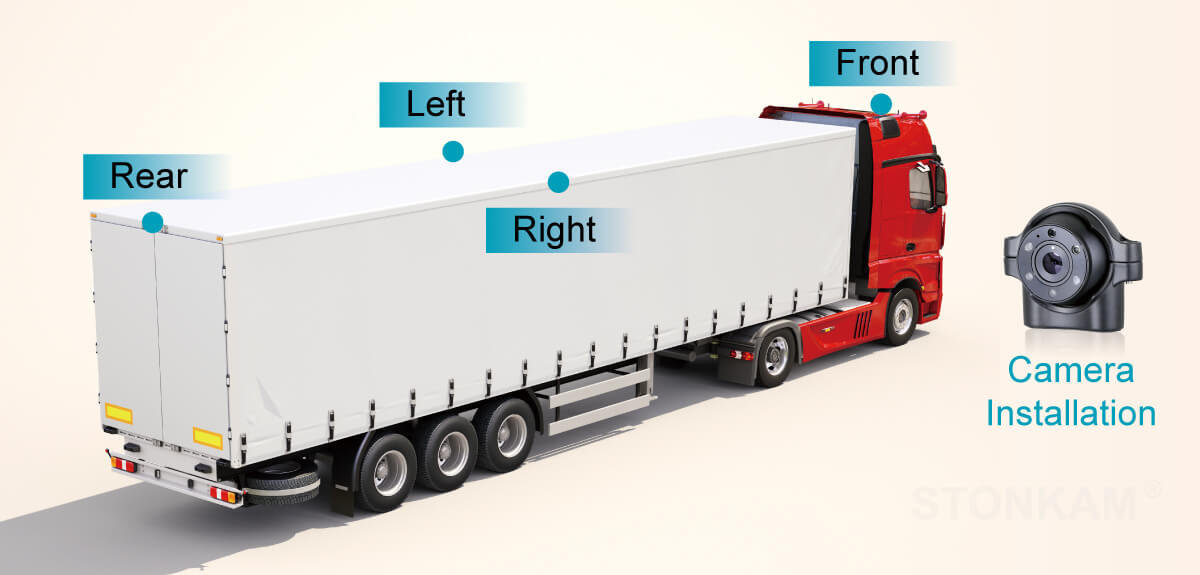

STONKAM® Front View Cameras can be easily applied to various vehicles.

1080P Waterproof Side View Camera for Truck-Application



1080P IP69K Mini Waterproof Side View Camera-Application
