1080P WDR Vehicle Front View Camera

FHD813

STONKAM Vehicle Front View Camera made of 1080P lens with WDR image processing techniques .Therefore, no matter it is daytime or night, or under low visibility conditions, the front camera of stonkam could achieve clear and stable image effects. It could be used in conjunction with STONKAM 1080P Advanced Driver Assistance System(ADAS) to achieve the forward collision warning function, thereby improving driving safety!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

  • 1080P high definition

  • WDR:105dB(MAX)

  • Wide power supply: DC 9~16V、DC 10~32V

  • Working temperature: -20ºC ~ +70ºC

  • Anti-vibration: ISO16750-3 2012 (5.9G)

Image Device

1/2.9”CMOS

Frame Rate

25fps/30fps

Effective Pixels

1920(H)x1080(V)

Pixel Size

2.8μm x 2.8μm

Scanning System

Progressive Scanning

Sync. System

Internal

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Dynamic Range

105dB

White Balance

Auto

Electronic Shutter

1/30(1/25)~1/50,000 Seconds

BLC

Auto

Operating Temp. & Humidity

-20℃ ~ +70℃, RH95%MAX.

Storage Temp. & Humidity

-30℃ ~ +80℃, RH95%MAX.

Minimum Illumination

0Lux

Power Supply

DC 9~16V、DC 10~32V

Lens

f=6.0mm/3.6mm/2.8mm(optional)

Viewing Angle

D=50°/110°/120°(optional)





Why do we need to install STONKAM  high definition vehicle front view camera?



Do you always have such doubts? !
How to avoid traffic accidents caused by strong light or dark environment?
How to "get rid of" the traditional bulky camera and achieve a non-destructive and easy installation?
……

vehicle camera





STONKAM 1080P WDR Vehicle Front View Camera will solve your problem



1080P WDR Vehicle Front View Camera





WDR wide dynamic range technique, better vision result

WDR wide dynamic technology could read the video information of the camera imaging sensor, find the brightest and darkest part of the video, and then through secondary analysis and processing, balance the exposure of each area in the image, which can effectively reduce the excessive brightness and enhance the darker picture. Therefore, whether it is under strong light or dim environment, or in the light-dark transition when entering and exiting the tunnel, STONKAM 1080P high definition vehicle front view camera will provide you with clear and stable image effects, and better vision result than ordinary videos effect.

vehicle WDR camera





Adjustable design, viewing angle changes with the vehicle

STONKAM 1080P front view camera adopts a flexible adjustment design and has a pointer angle adjustment function, which can independently adjust the camera angle according to needs to obtain a variety of image perspectives.

vehicle camera

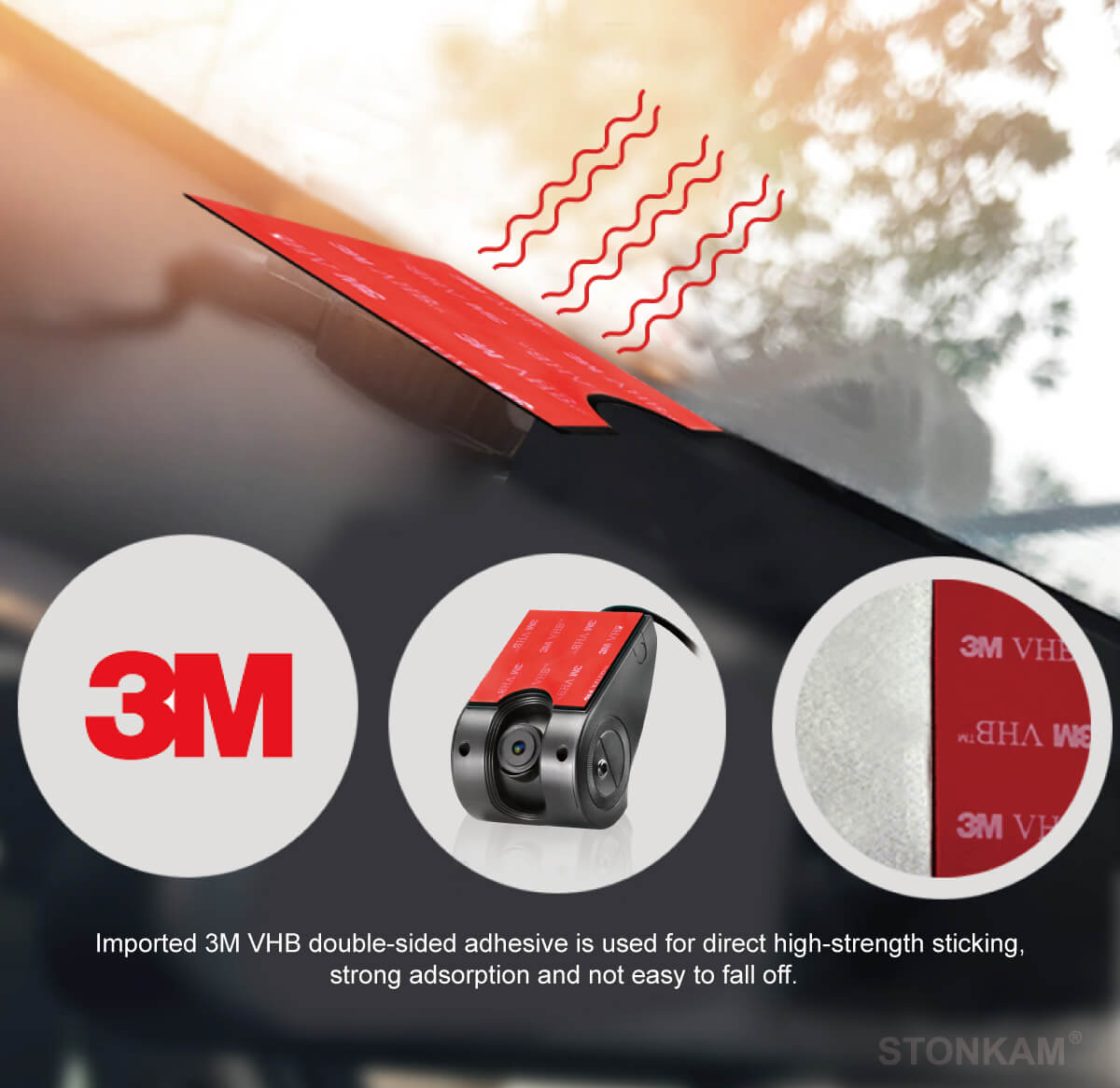

Non-destructive installation, durable

Imported 3M VHB double-sided adhesive is used for direct high-strength sticking, strong adsorption and not easy to fall off.

Vehicle Front camera





Applications

STONKAM 1080p vehicle front view camera is easy to install and can be applied to a variety of vehicles. It can be used in conjunction with the ADAS advanced driving assistance system to remind the driver to pay attention to driving safety and help safe driving.

For Bus

Vehicle Front View camera



For Truck

Car  Front camera
